Aperçu /Produits/Machine de régénération d'huile de transformateur/Factory Waste Oil Regeneration Vacuum Insulation Oil Purification Insulating Oil Treatment Machine

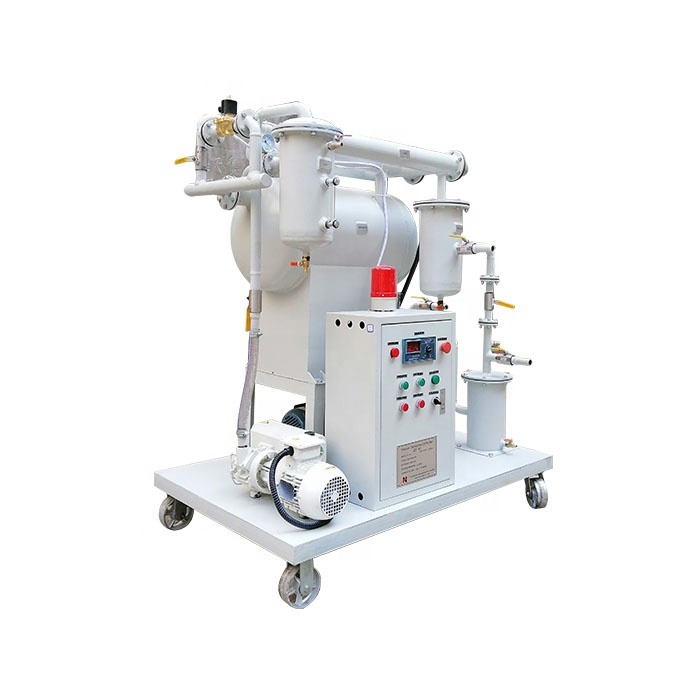

Factory Waste Oil Regeneration Vacuum Insulation Oil Purification Insulating Oil Treatment Machine

1 Set
MOQ
$3,400.00(>=1 Sets)
Prix
Factory Waste Oil Regeneration Vacuum Insulation Oil Purification Insulating Oil Treatment Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Manufacturing Plant, Construction works , Energy & Mining
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 2 years
Core Components: Motor, Pump
Condition: New
Flow: 10L/min
Voltage: 380V 50HZ 3P (or as needed)
Power: 16.5KW
Dimension(L*W*H): Model Choose
Weight: 230 kg
Warranty: 1 Year
Temperature Range: 20 ~80℃
Heating Power: 15-90 KW
Breakdown Voltage: ≥65-70 KV
Water Content: ≤4PPM
Gas Content: ≤0.1%
Working Noise: ≤65-75dB(A)
Vacuum Degree: -0.06 ~ -0.098MPa
Particles Size: ≤5μm
Continuous Working: ≥150H
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Field installation, commissioning and training
Certification: CE ISO TUV
Informations de base
Certification: CE ISO TUV
Conditions de paiement et expédition
Packaging Details: Wooden case
Supply Ability: 200 Set/Sets per Month
Description de produit

VUsed oil regeneration vacuum insulation oil purification insulating oil treatment machine

Application:

ZY series high efficiency vacuum insulating oil purifier, mainly for the power station, industrial and mining enterprises purifying the unqualified transformer oil, mutual inductor oil, switch oil and so on.

ZY series can remove water, trace water, gas, particles from oil quickly and effectively, improving oil dielectric strength. Also, this oil purifier can be used to power equipments to vacuum drying, and vacuum oiling.

Features:

1.Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

2. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies

3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.

5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak.

If there is any fault, machine will be power off automatically.

6. Working with BZ insulating oil regeneration device to decolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.

We can also supply following machines:
